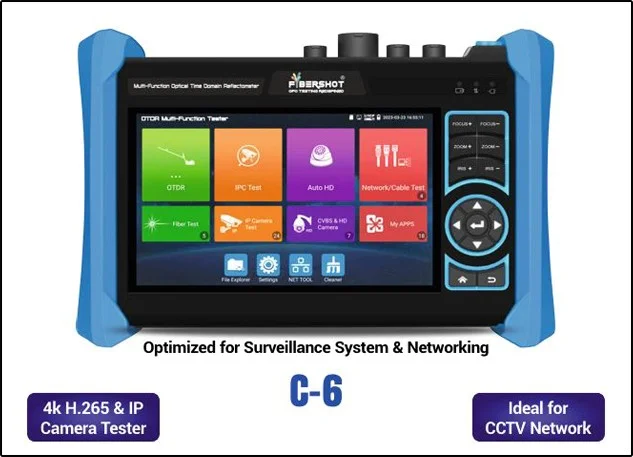

C6 Pro OTDR – The Ultimate All-in-One Fiber, Copper, and CCTV Testing Device

The Fibershot C6 Pro OTDR is an advanced, all-in-one field tester for fiber networks, RJ45 copper cables, and CCTV/IP camera systems. Built for telecom engineers, CCTV installers, and surveillance professionals, this multifunction tester combines OTDR, IP camera tester, PTZ tester, PoE tester, and network diagnostics in one compact device.

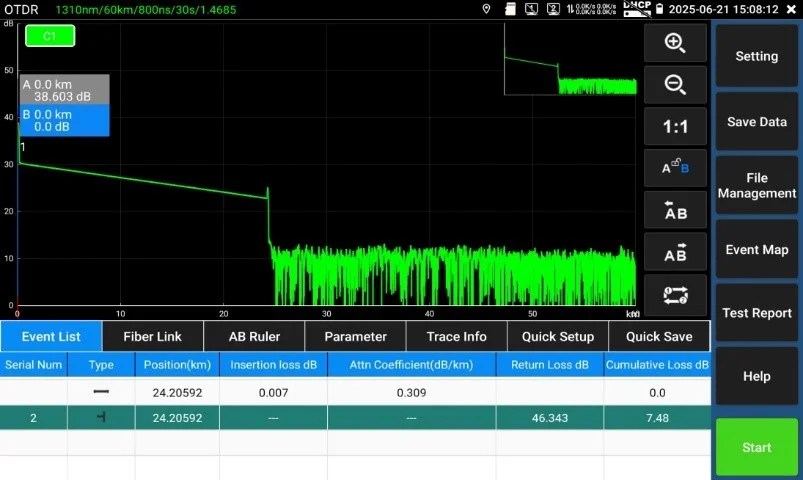

The C6 Pro OTDR delivers top-tier optical testing for FTTx, FTTH, and backbone fiber networks.

• Dual-wavelength 1310/1550nm ensures accurate fiber link testing.
• Dynamic range up to 45dB and trace distance up to 200KM.
• Real-time + average mode, zoom view, and detailed event mapping.
• Detect microbends, dead zones, and loss points with pinpoint accuracy.

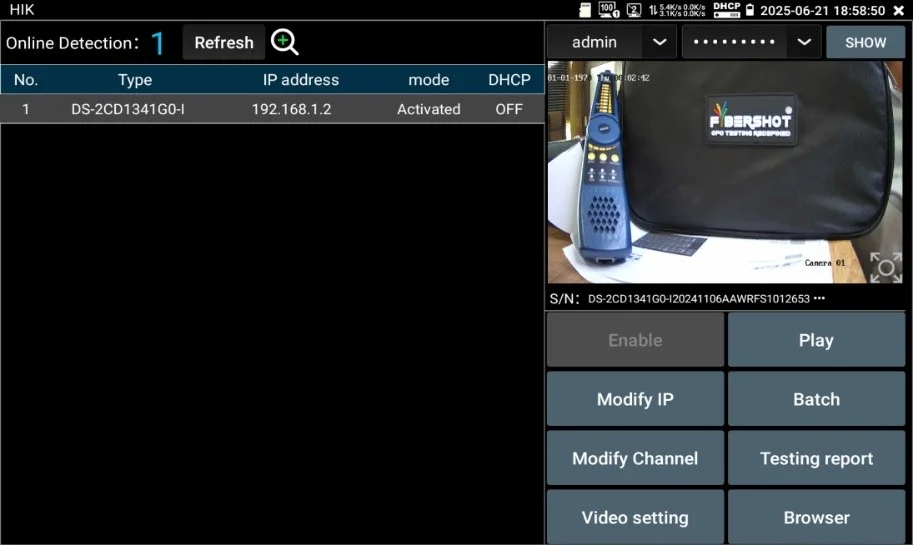

• Fully compatible with TVI, CVI, AHD, CVBS, and next-gen 4K IP cameras.
• Supports popular brands like Hikvision, Dahua, Uniview, Axis, Bosch, CP Plus, Panasonic, Sony, Honeywell, Samsung Hanwha, Pelco, Vivotek, ZKTeco, and many more.
• Features include Auto IP scanning, PTZ control, OSD menu access, video playback, and snapshot capture—all directly accessible via the intuitive OTDR interface.
• Equipped with HDMI and VGA inputs for real-time video display and broad camera compatibility.
• Streamlines IP and analog camera installation with a built-in all-in-one CCTV testing solution.

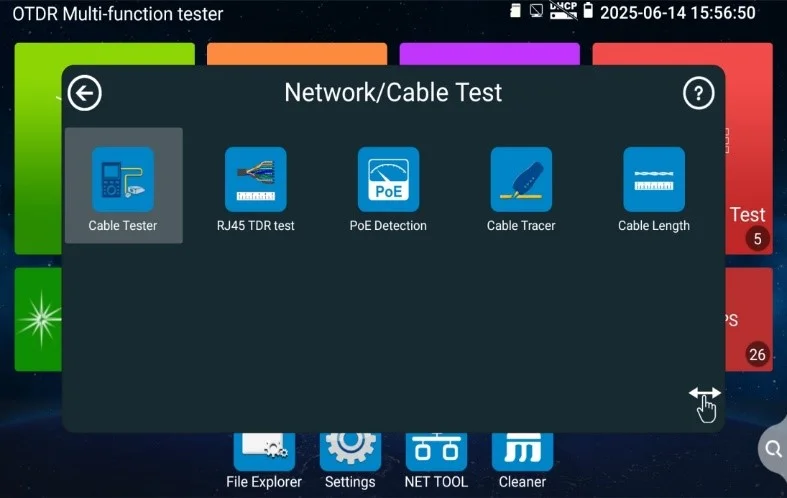

This isn’t just a fiber tester – it’s also your TDR-based copper cable analyzer.

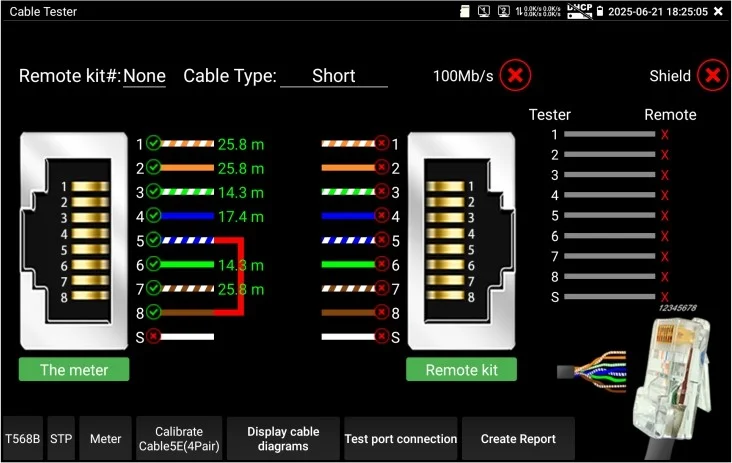

• RJ45 cable diagnostics up to 600 meters – Accurately detect cable length, shield integrity, connector faults, and PoE voltage levels.

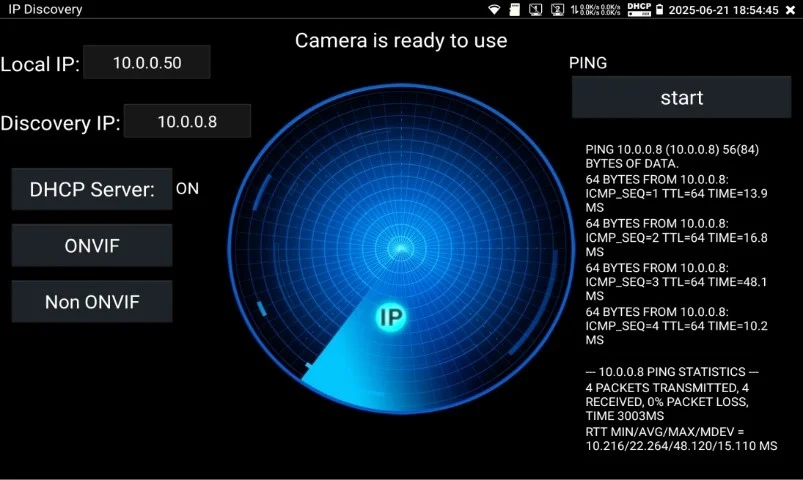

• Built-in IP testing tools including Ping, DHCP scan, Traceroute, and Port Flashing, to ensure seamless LAN connectivity.
• Seamlessly integrates OTDR, LAN tester, and PoE analyzer functionalities into a single, compact, and field-ready device.
• Ideal for LAN testing, PoE switch validation, and enterprise copper troubleshooting, the C6 Pro offers complete end-to-end diagnostics without the need to switch between multiple devices.

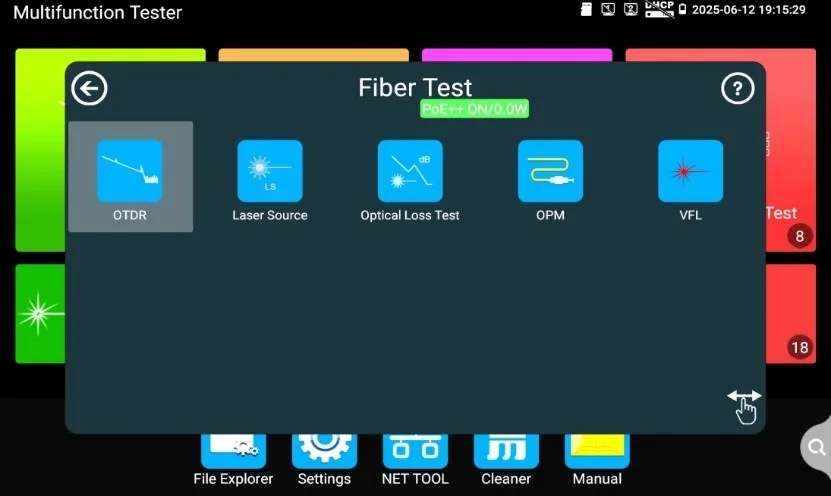

• Optical Power Meter (OPM): Accurately measures optical signal strength across a wide wavelength range (850nm to 1625nm), perfect for checking fiber link performance and loss.
• Visual Fault Locator (VFL): Bright red laser locates fiber breaks, bends, and connector issues up to 8KM—ideal for quick fault identification.
• Stable Laser Source (OLS): Provides adjustable output power and modulation frequencies (270Hz, 1kHz, 2kHz) to ensure accurate loss testing and fiber continuity checks.
• All-in-One Convenience (Zero Compromises): Eliminates the need to carry separate tools by integrating all essential fiber testing functions into one compact device.

• Powered by Android OS – Offers a smartphone-like experience with an intuitive interface.
• Built-in WiFi Hotspot – Enables wireless connectivity for instant sharing, updates, and remote support.
• Seamless App Installation – Download and use third-party apps for added functionality and flexibility.
• Remote Troubleshooting – Collaborate with offsite teams in real time for faster problem resolution.
• Multi-Format Report Saving – Store OTDR traces and test reports in SOR, PDF, and Excel formats.
• Flexible File Export Options – Share files via WiFi, USB, or microSD—ideal for documentation and reporting.
• Industry-Compatible File Support – Works with standard formats to integrate easily into existing workflows.
• High-Performance Processor – Quad-core processor ensures fast and smooth multitasking during testing.
• 6-Inch Full HD Touchscreen – Delivers sharp visibility in outdoor environments, even under direct sunlight.
• All-in-One Intelligent Platform – Combines powerful testing tools with smart connectivity for next-gen field diagnostics.

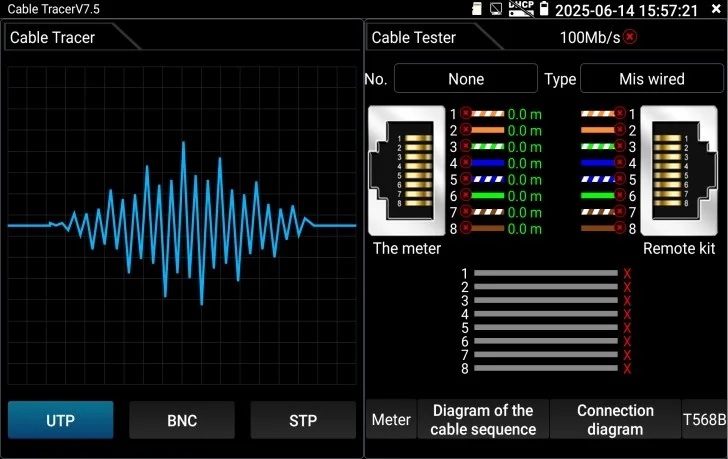

• Digital Cable Tracer: Quickly trace and identify BNC, RJ45, and telephone lines, even within bundled or cluttered cable systems—ensuring fast, efficient, and organized installations.
• Built-in Electroscope: Provides CAT.III 1000V live wire detection with both audible and visual alarms—enhancing safety in high-voltage working environments.
• PoE Voltage Testing: Accurately measures PoE switch output, checks PSE voltage, and tests cable connectivity status—perfect for smart building infrastructure and surveillance system validation.
• Multilingual OSD Menu: Supports 15+ international languages, making the device accessible and user-friendly for multilingual teams and global deployments.

• Telecom Installation & Maintenance
  Perform accurate fiber testing, event mapping, and loss analysis for FTTH, FTTx, and backbone networks.
• CCTV Camera Installation (Analog + IP)
  Test 4K IP, TVI, CVI, AHD, and CVBS cameras with features like Auto IP scan, PTZ control, and real-time preview.
• LAN & Copper Network Diagnostics
  Detect cable faults, measure length (up to 600m), and verify PoE using built-in TDR and RJ45 tools.
• Smart Building & Surveillance Integration
  Validate PoE switch output, test IP devices, and streamline multi-brand camera setups—all in one tester.
• The C6 Pro OTDR is the perfect all-in-one solution for professionals working across fiber optics, IP surveillance, and network infrastructure—saving time, tools, and effort on every job.

The C6 Pro OTDR + CCTV Tester is your all-in-one solution for fiber, copper, CCTV, and network testing. Whether you’re working on FTTx rollouts, IP camera setups, or PoE switch validation, this tool simplifies every task.

Fast, smart, and built for the field — the C6 Pro is the best OTDR tester for modern network professionals.
