OTDR – Optical Time Domain Reflectometer 2025: Complete Guide

Fiber optic networks are the backbone of modern communication, and ensuring their performance requires
advanced testing tools. One of the most reliable tools is the OTDR (Optical Time Domain Reflectometer). In
2025, OTDRs have become smarter, faster, and more user-friendly, making them essential for network
installation, maintenance, and troubleshooting.

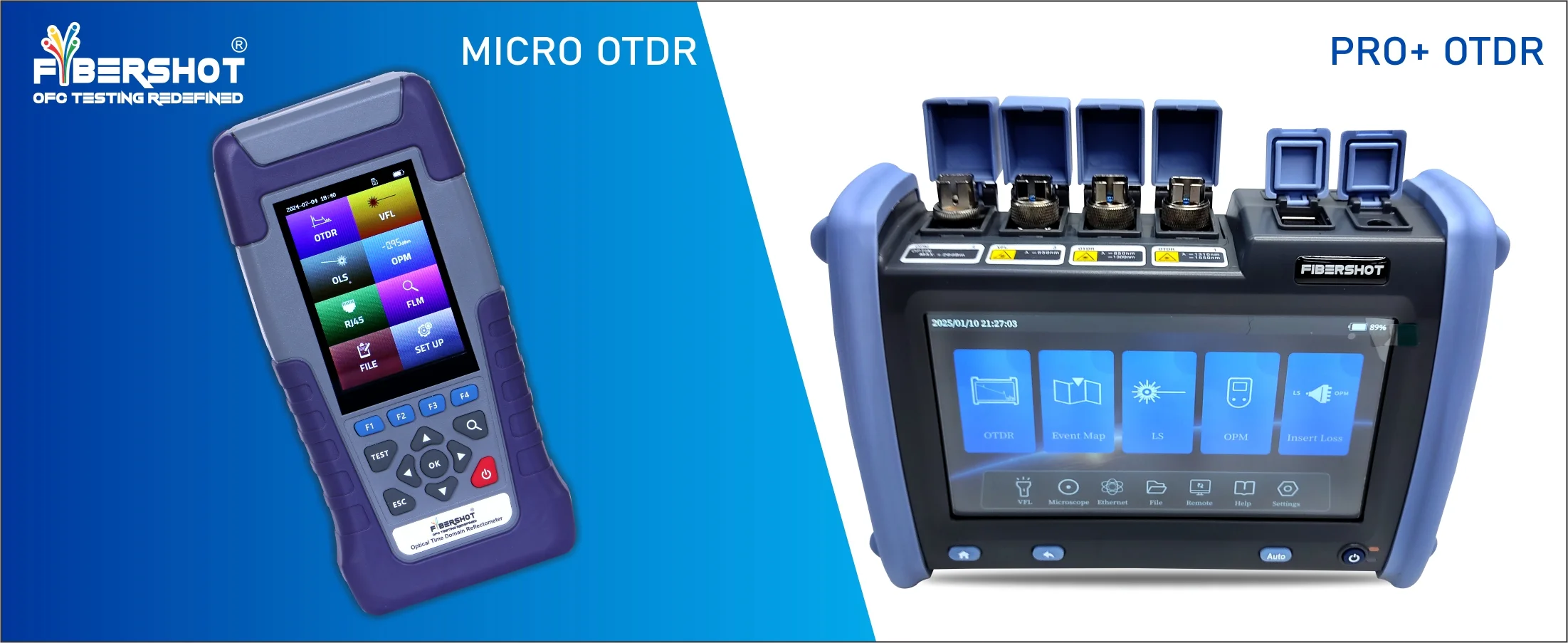

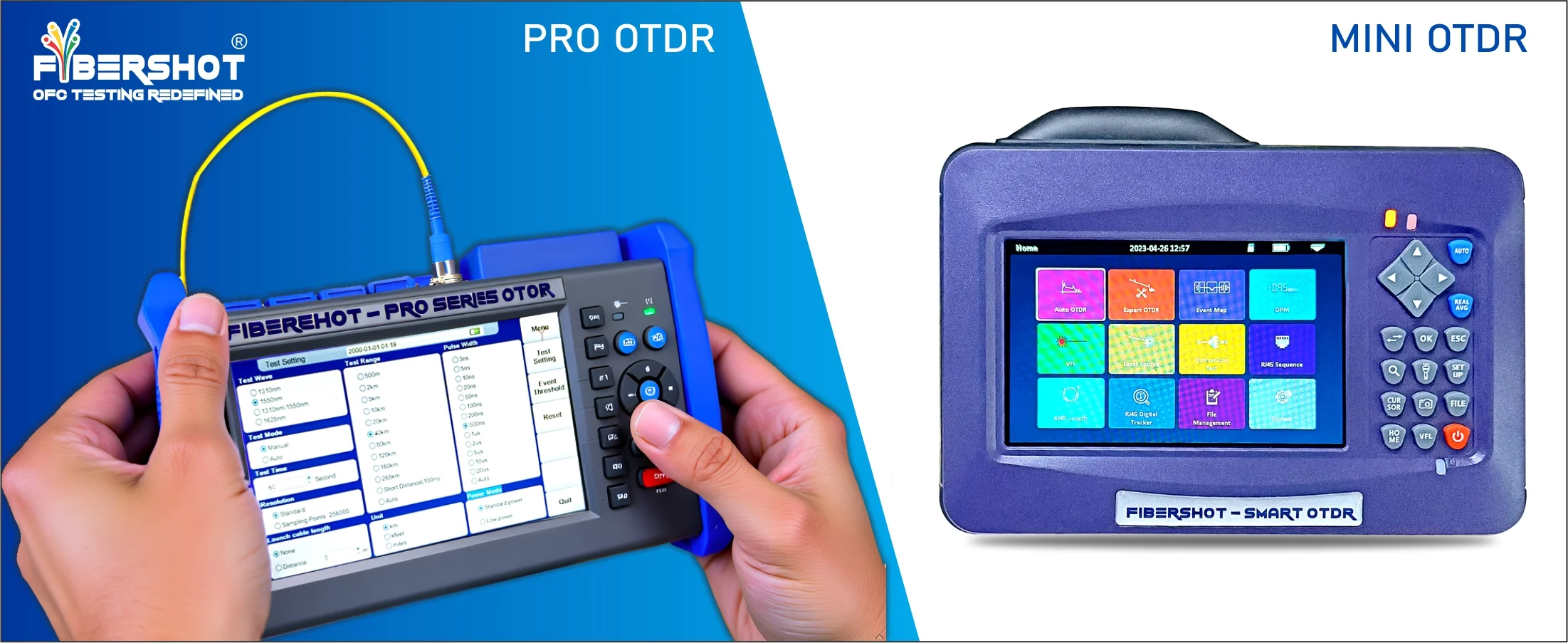

An OTDR (Optical Time Domain Reflectometer) is a testing device used in fiber optic networks to measure
the integrity of optical fibers. It works by sending a series of light pulses into the fiber and analyzing the
reflected signals. This helps in detecting faults, splices, bends, and breaks along the cable.

The OTDR working principle is based on Rayleigh backscattering and Fresnel reflections:

• When a light pulse travels through the fiber, small amounts of light are scattered back.
• Reflections occur at fiber joints, connectors, or breaks.
• The OTDR records these signals, plots them on a graph (trace), and calculates the distance to each event.

This allows technicians to visualize the fiber link and identify potential problems.

Using an OTDR involves simple but precise steps:

1. Power On & Setup – Turn on the OTDR and select the appropriate wavelength (commonly 1310nm and 1550nm).
2. Clean & Connect Fiber – Clean connectors with proper cleaning tools to avoid dust interference.
3. Launch Cable – Attach a launch cable between the OTDR and the fiber under test for accurate measurements.
4. Configure Test Settings – Set range, pulse width, and resolution according to fiber length.
5. Run the Test – Start the measurement. The OTDR will send pulses and generate a trace.
6. Save Results – Store results for reporting and future reference.

The step-by-step OTDR testing procedure includes:

• Preparation: Ensure fiber ends are clean and use the correct launch/receive cables.
• Calibration: Set distance range, wavelength, and pulse settings.
• Testing: Run multiple scans at different wavelengths.
• Verification: Compare results with fiber specifications.
• Documentation: Save test reports for compliance and troubleshooting.

OTDRs are powerful tools for fiber optic troubleshooting. They help detect:

• Fiber breaks – OTDR pinpoints the exact location of the break.
• Excessive bending – Loss detected in specific spots indicates sharp bends.
• Connector/splice loss – High reflection shows poor connection or dirty connectors.
• Attenuation issues – Continuous loss along fiber may indicate aging or poor installation.

With OTDRs, technicians can quickly restore connectivity and reduce downtime

Analyzing OTDR test results requires understanding the OTDR trace:

• Spikes or Peaks – Indicate connectors or reflection points.
• Sudden Drop – Suggests fiber break or sharp bend.
• Gradual Slope – Represents attenuation (signal loss) along the fiber.
• Flat Line After a Drop – Indicates the end of the fiber.

By comparing trace data with expected values, engineers can confirm whether the fiber is performing optimally.

In 2025, OTDR testing remains one of the most critical practices in fiber optic installation and maintenance.

With advanced OTDR machines, technicians can:
✔Detect fiber issues quickly
✔Ensure compliance with standards
✔Optimize network performance

Whether you are installing new fiber, verifying connections, or troubleshooting failures, an OTDR is the
ultimate tool for reliable fiber optic testing.
