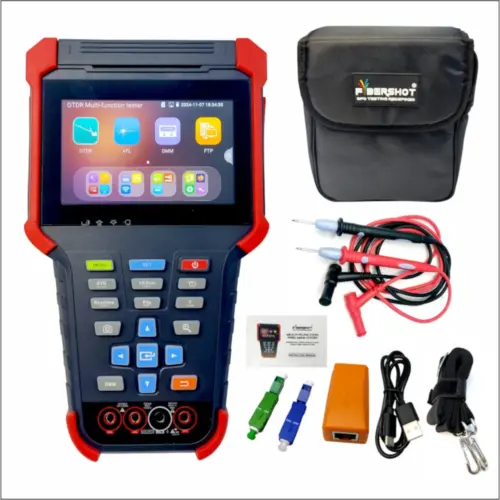

Micro-OTDR-II

₹55,000.00

Presenting The New All in One Multifunction Fiber Testing Device

The Fibershot Micro-OTDR-II OTDR is used for maintenance & installation of cable-TV/broadband/FTTH/network/device maintenance/engineering acceptance, CCTV network,and transmission cables and so on.

The FibershotMicro-OTDR-II OTDRcan determine and locate the faults and breaks of an optical fiber, network cable and other cables & wires within 5 seconds automatically and very easily.

The Fibershot micro OTDRs greatly improves the efficiency of installation & maintenance while reducing the cost of operation & maintenance, especially suitable for the last 100 meters of optical fiber& network cables on FTTH.

Category: Brand:

Description

OTDR: Locate the faults and breaks of an optical fiber, measure the length, the transmission loss, and the splice loss.

OPM: Measure the average optical power.

VFL: Used for fiber tracking, finding fiberfaults, losses & breaks.

Network Cable Test: To determine faults in RJ-45 networking cable.

Optical Laser Source: Optical laser source is used for testing of singlemode fiber optic network and offers the user excellent stability and portability for accurate fiber optic test &inspection capabilities.

Fiber Link Map: FLM is a technology that automates the process of configuring the OTDR to capture and analyse all the information on a fibre in a simple user friendly formatwhile displaying information about the length and the number of connectors and splices on the span.

General
Screen 3.5

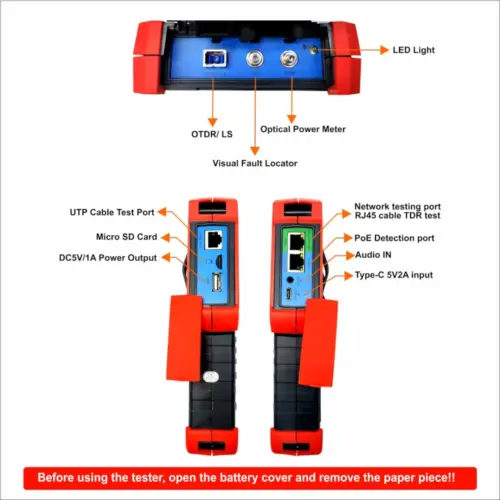

Interface Ports OTDR/OLS, VFL, OPM - RJ 45, USB Type C
External Memory 8G (Micro Sd Card )
Results Storage 10000 Records
Battery Life stand by>10h; testing >5h
Power Supply 5V, 5000mAh lithium battery
Working Environments Working temperature: 0~+50℃, <90%RH;
Storage temperature: -20~+70℃,<90%RH
Dimensions/Weight 1192mm×93mm×47mm, <570g
Technical
Dynamic Range 26/24dB
Wavelength 1310/1550nm (±20nm)
Fiber Type SM
Event Dead Zone 1.0m
Attenuation Dead Zone 4m
Pulse Width 3ns to 20us
Distance Range 0 to 80km
Sampling Points 1,28,000
Linearity ±0.01 dB/dB
Event Display Fiber End, Reflective Event Splice Loss
OLS 1310/1550 @ > -7dB
RJ45 Sequence Test RJ 45 Continuity Test
VFL
Output Power 10mW
Wavelength 650±20nm
Power Meter
Calibrated Wavelength 850, 1300, 1310, 1490, 1550, 1625, 1650 nm
Measurement Range -50 to +26 dBm

Features

  • OTDR – full function PON OTDR that also allows Live Fiber Testing
  • LTDR – To Test Copper CAT-5/6, Cable TV Copper Cables, Electrical Wiring.
  • OPM – To Check Optical Signal Level
  • PON POWER METER – Check OLT/ONU, Useful for Internet Service Providers.
  • VFL – Check Fiber Faults Visually.
  • NETWORK TEST – No Need of Laptop to check Internet Speed & LAN Health.
  • LINK TEST – Can check Ping to the Router/Gateway.
  • LINE TEST – Check Break/Shorting Point in The Copper Cat-5/6 Cables
  • LINE SEARCH – Locate cables under the Wall or Find Cable in the Control Room.

Applications

  • Excellent service tool for FTTx
  • Broadband
  • Cable TV Service
